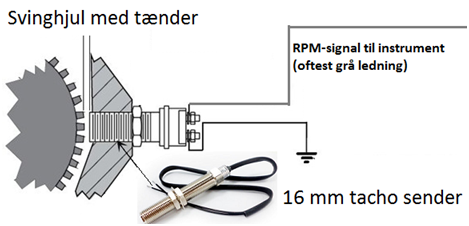

Magnetoelectric Tacho sensor, til omdrejningstæller. To ledninger: Stel (minus) og instrument.

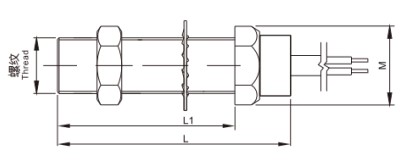

L(mm): 100
L1(mm): 80
Thread: 5/8"-18UNF
M: SW19
Magnetoelectric Tacho Sensor:
Operating temperature: -40~85℃
Output signal: sine wave
Inductance distance: ≤1mm
Tooth module: 2~6
Connection method:
two wires connection
