Føler/giver til kølevandstemperatur. Med to udtag til kølevandstemperaturinstrument og til alarm (lys/lyd).
Dimensioner 1/2''- 14 NPT.
Specifications:

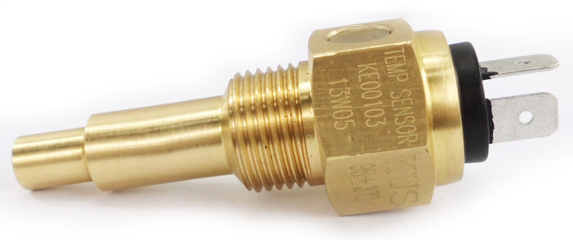

Two pins alarm water temperature sensor for generator (type III), 1/2'' - 14 NPT, 40-120°C, with alarm (96°C).
Technical Data:
• Main material:Brass for main body and double metal plate for alarm switch
• Rated voltage:6V-24V
• Rated power for alarm switch:1.2W-3W
• The temperature alarm tolerance:±3°C
• Measuring temperature range:40~120°C
• Protection range:IP67
• Rated power for alarm switch:Minimum 3 minutes after power supply electrified.
• Type of alarm touch: The switch turns on (closed) when the temperature rises.
• Sensors with alarm features has double metal plate connectors.
